Solar Panel
- Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Waterproof charge controller giving you more freedom to install anywhere
- With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream
Charge Controller
- 12V / 24V Battery Compatibility with Auto Recognition
- Smart 4 Stage PWM charge controller: Bulk, Absorption. Float, and Equalization
- 4 Battery Type Compatiblity – Sealed/AGM, Gel, Flooded, and Lithium batteries (with Lithium Awakening feature)
- Watertight design with Backlit LCD display for system information and error codes
- Multiple protection features for battery, controller, and solar panels (including reverse polarity and more)
SPECIFICATION

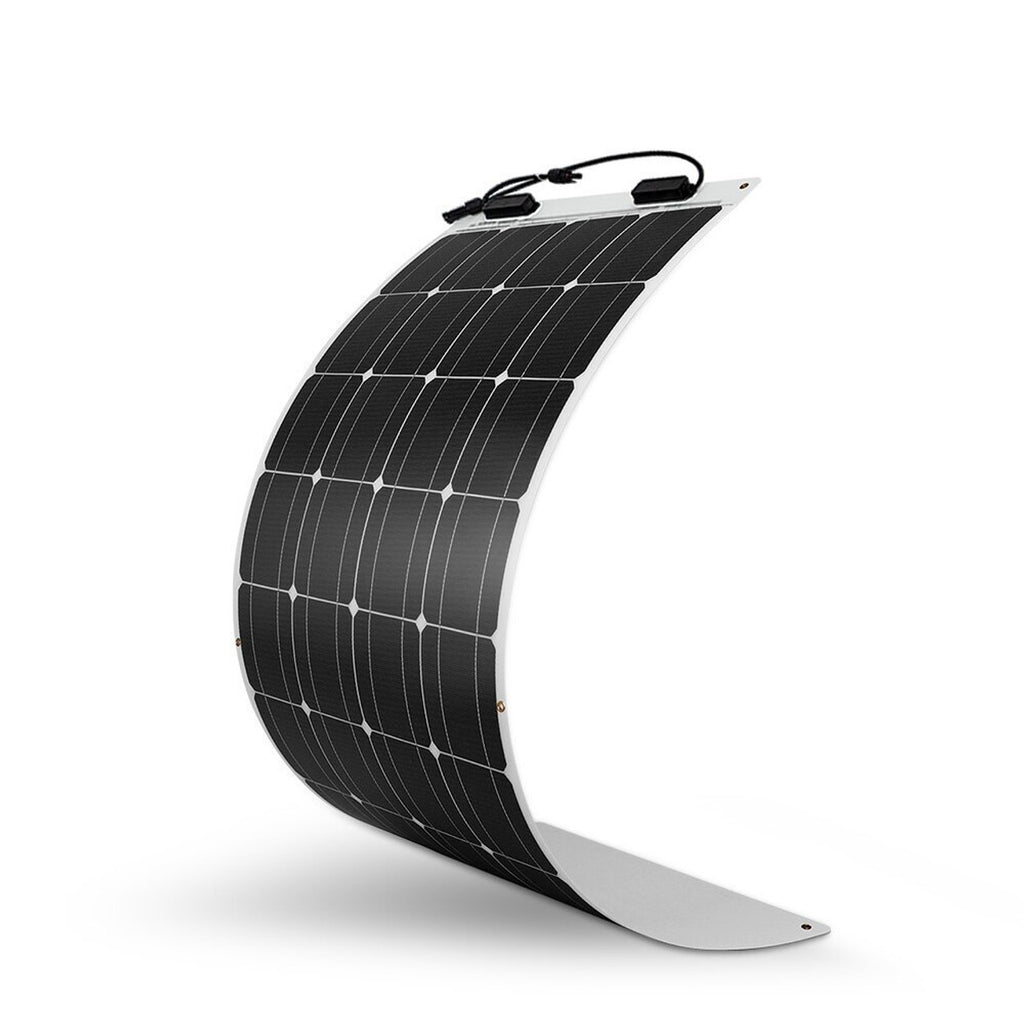

RENOGY 100 W 12 V FLEXIBLE MONOCRYSTALLINE SOLAR PANEL
Maximum Power at STC: 100W
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 18.9V
Open-Circuit Voltage (Voc): 22.5V
Optimum Operating Current (Imp): 5.29 A
Short-Circuit Current (Isc): 5.75 A
Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)
Weight: 4.2 lbs (1.9 kg)

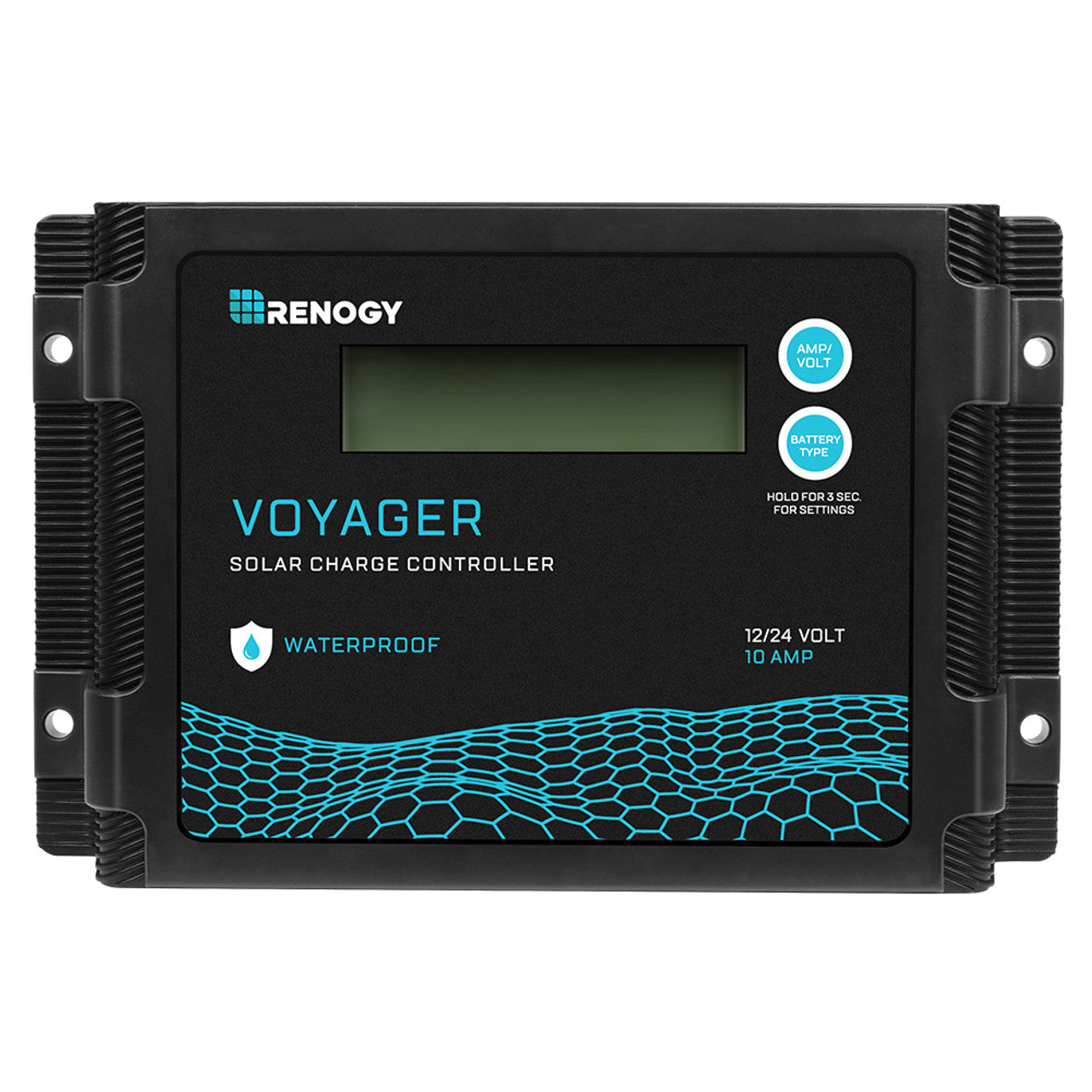

NEW EDITION VOYAGER 10A PWM WATERPROOF SOLAR CHARGE CONTROLLER
Nominal Voltage: 12V/24V
Rated Charge Current: 10A
Max. PV Input Voltage: 55 VDC
Max. PV Power: 130W (12V) / 260W (24V)
Dimensions: 6.08 x 3.83 x 1.40 inches
Weight: 0.55 lbs

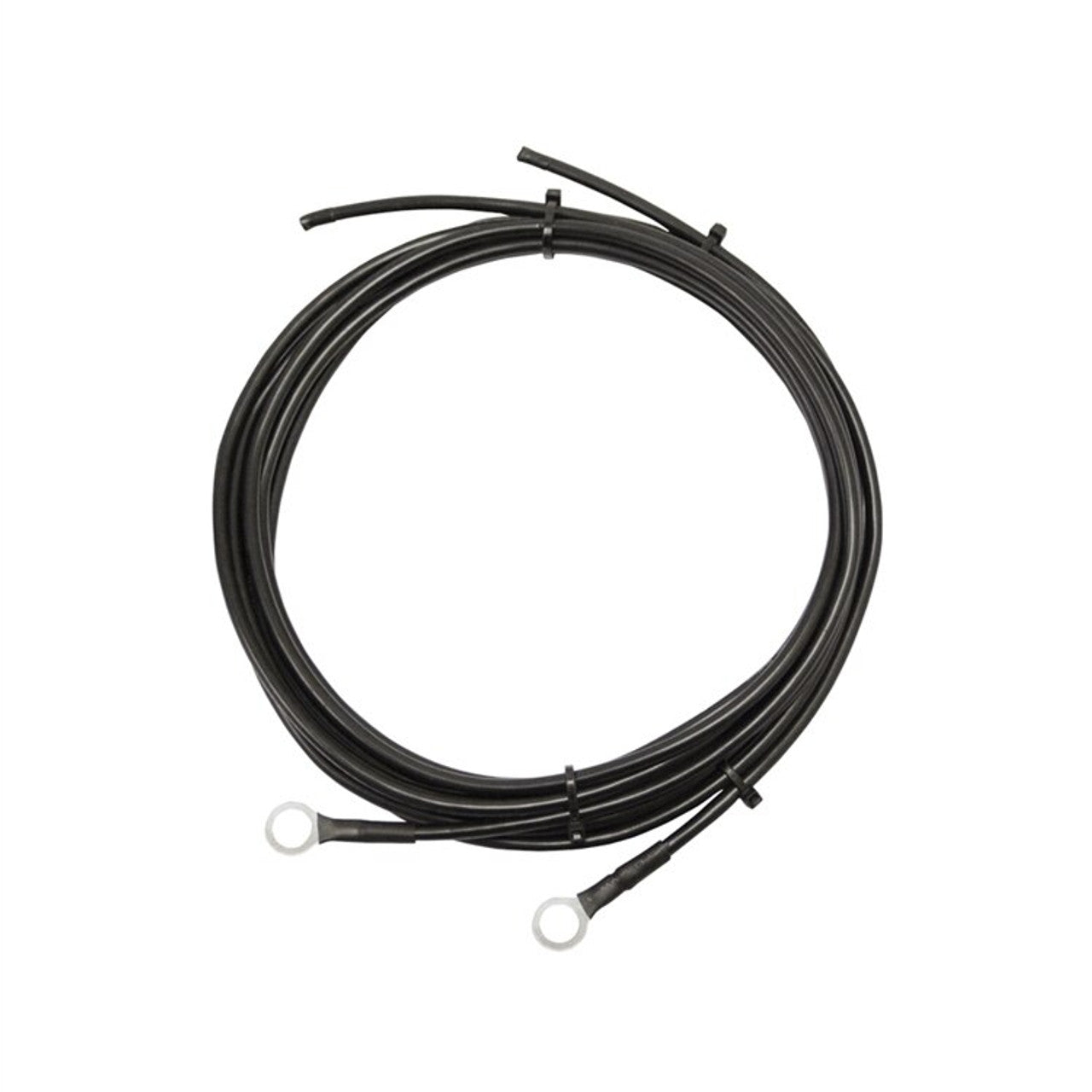

RENOGY 8FT 10AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

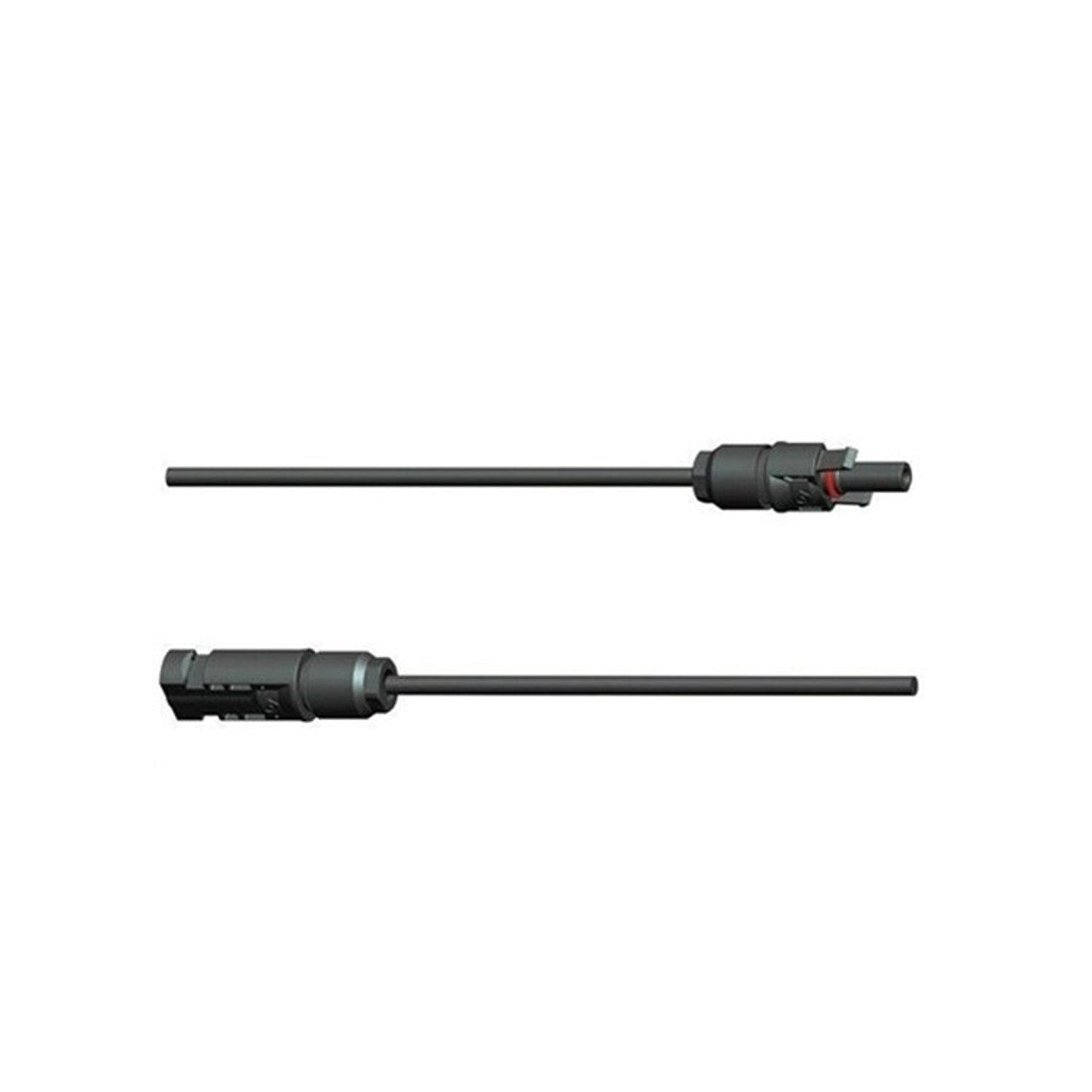

RENOGY 20FT 10AWG ADAPTOR KIT - CONNECTING SOLAR PANELS TO CHARGE CONTROLLERS (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
