DESCRIPTION

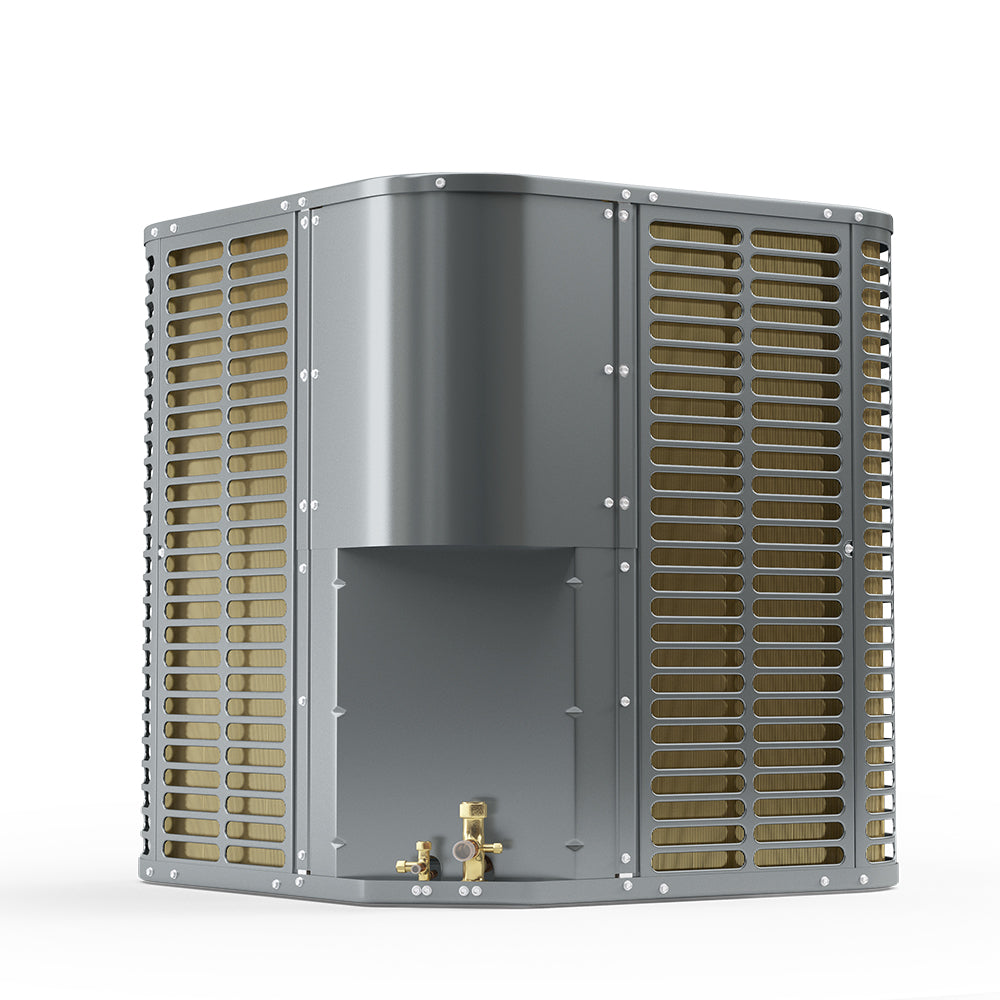

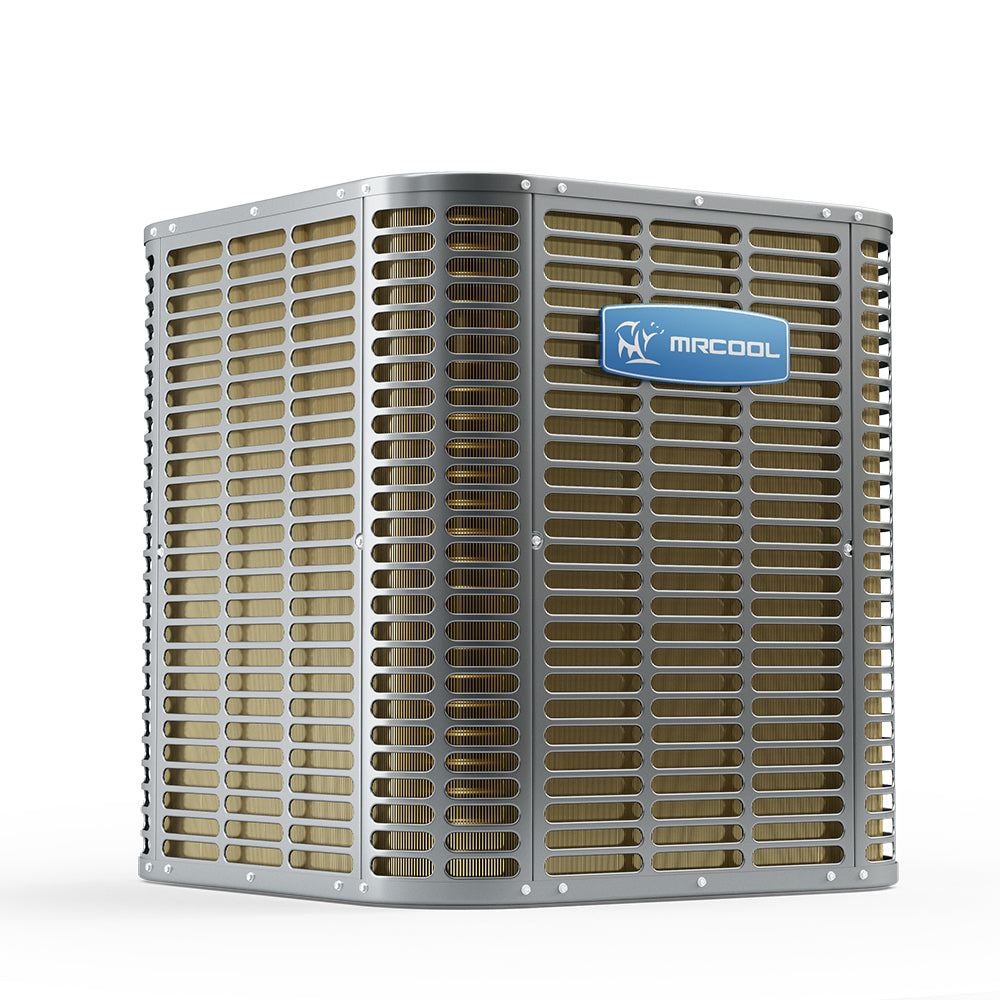

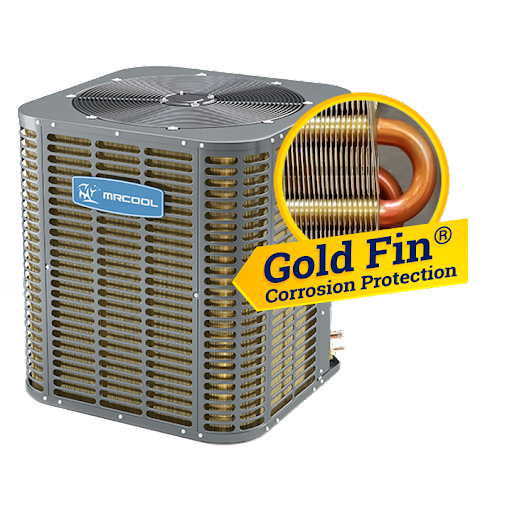

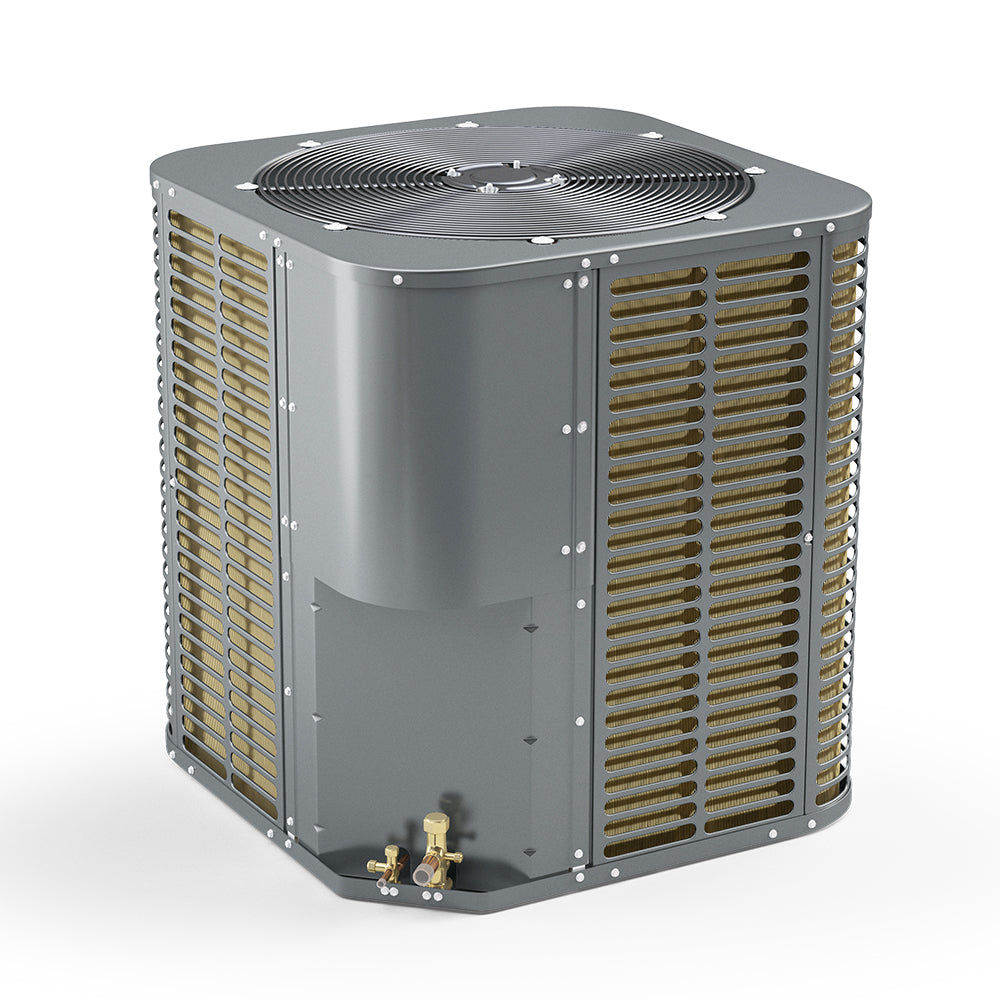

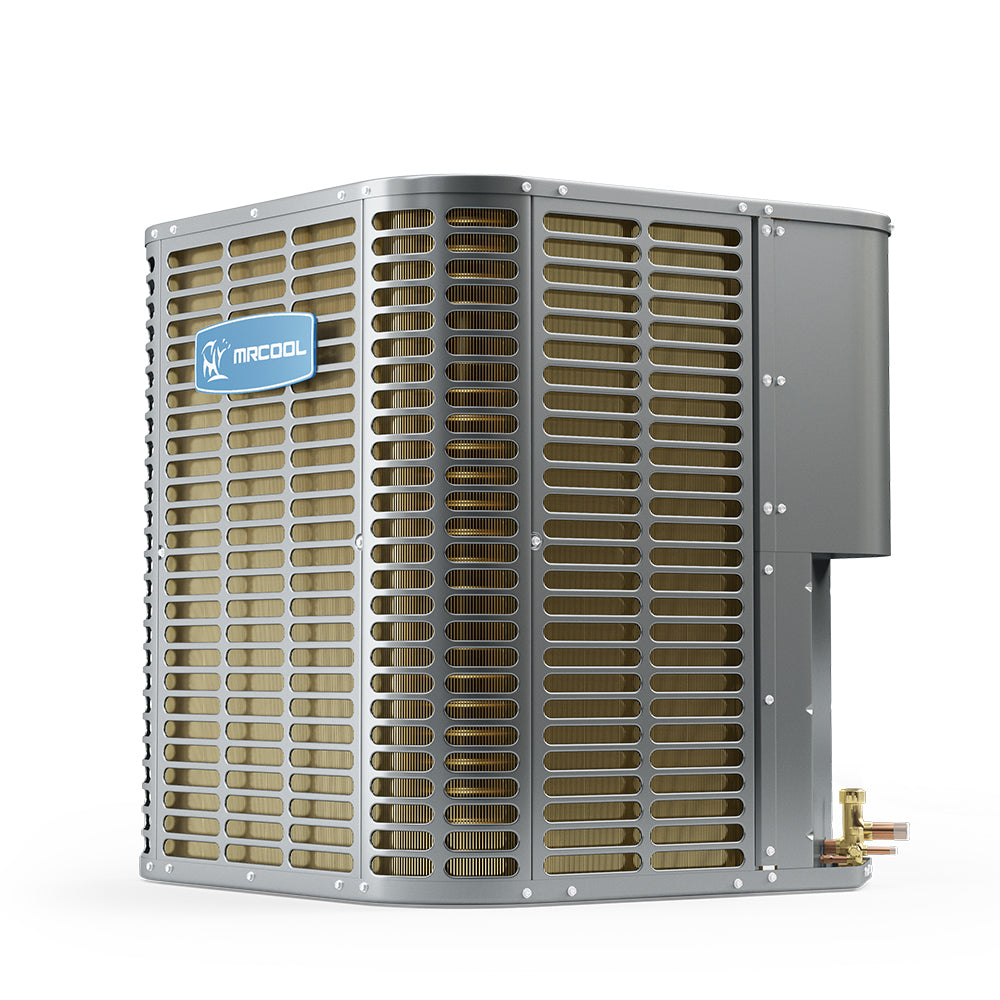

You deserve rest and relaxation while youre at home, which is why you need to throw out your old air conditioner that hasnt kept you cool in ages and switch it out with the ProDirect 4 Ton 14 SEER Split System A/C Condenser from MRCOOL. The scroll compressor works to process the refrigerant and move it through the system quickly and efficiently so that your home is brought to the exact temperature you want as soon as possible. For added efficiency, the piston flow control device manages the speed and volume of the refrigerant as it runs to bring you comfort. This unit has a galvanized steel cabinet protecting it from most damage, and a Gold Fin coil coating that keeps rust and corrosion far away from your system by keeping water off the coils. This nice-looking, non-toxic, environmentally friendly coating also gives your system better insulation. Be sure to register this AHRI certified, ETL listed condenser online to receive strong warranty protection. You dont have to go through another hot, sticky, sweaty summer when youve got comfort created by the MRCOOL ProDirect 4 ton split system A/C condenser.
FeaturesEquipment should be installed by a qualified professional10 Year Registered Warranty14 SEERR-410A environmentally friendly refrigerantAHRI Certified & ETL listedPressure and Temperature protection sensors help prevent damageA shape coils, constructed with copper tubing and enhanced aluminum fins.Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
SPECIFICATIONS
Dimensions |
33-3/16"H x 29-1/8"W x 29-1/8"D |
Weight |
185 lbs |
SEER |
14 |
EER |
11.2 |
CFM |
4000 |
Cooling Capacity |
46000 BTU |
Voltage |
230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
45 A |
Refrigerant Type |
R-410A |
Refrigerant Volume |
148.15 oz |
Decibal Rating |
63 dBA |
Air Flow Direction |
4-way |
Number of Speeds |
3 Speed |
Max Lineset Length |
66ft max |
Liquid Line Size |
3/8in |
Suction Line Size |
7/8in |
Compressor Motor Type |
Scroll |
Condenser Fan Motor RPM |
1095 |
Auxiliary Heater Available |
Yes |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Warranty |
10 Year Limited Warranty |
Proposition 65 Warning |
Yes |
Gross Depth |
30-1/10in |
Gross Height |
34-1/2in |
Gross Width |
30-1/10in |
Gross Weight |
196 lbs |
Restricted States |
CA;NV;AZ;NM |
