DESCRIPTION

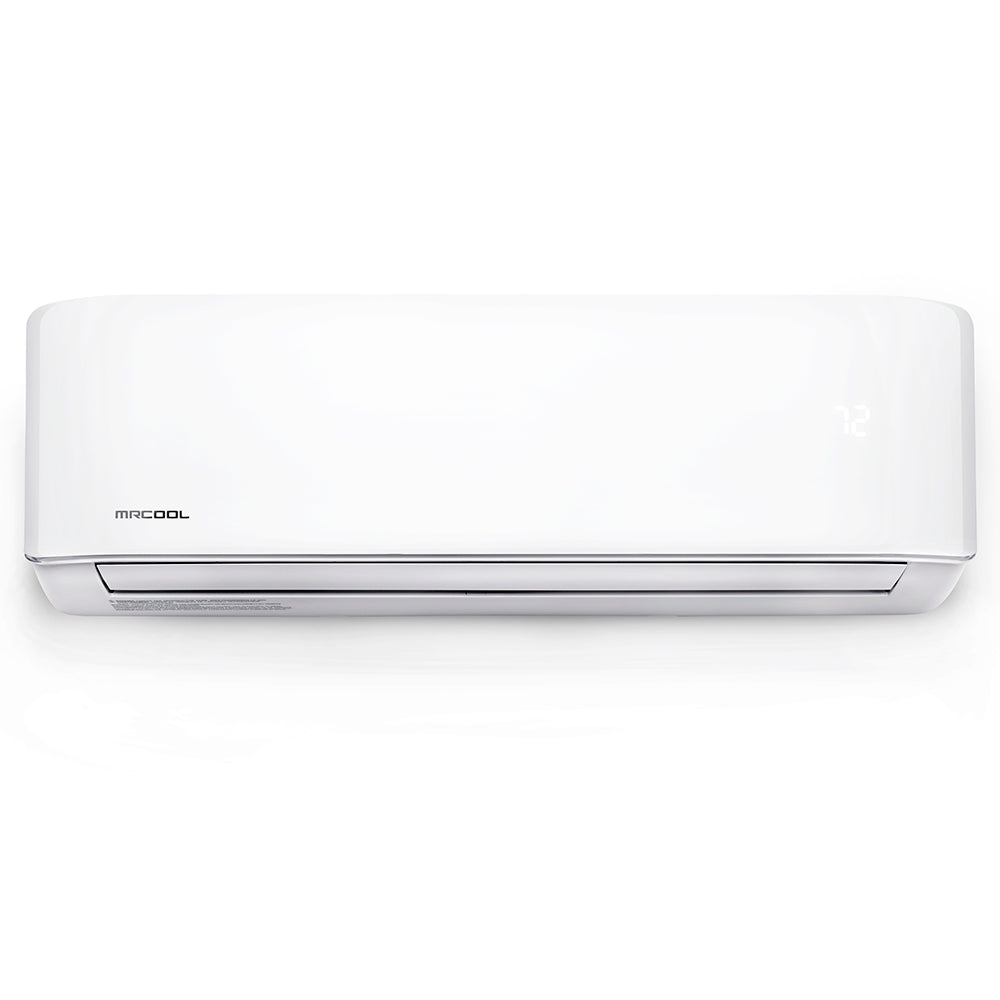

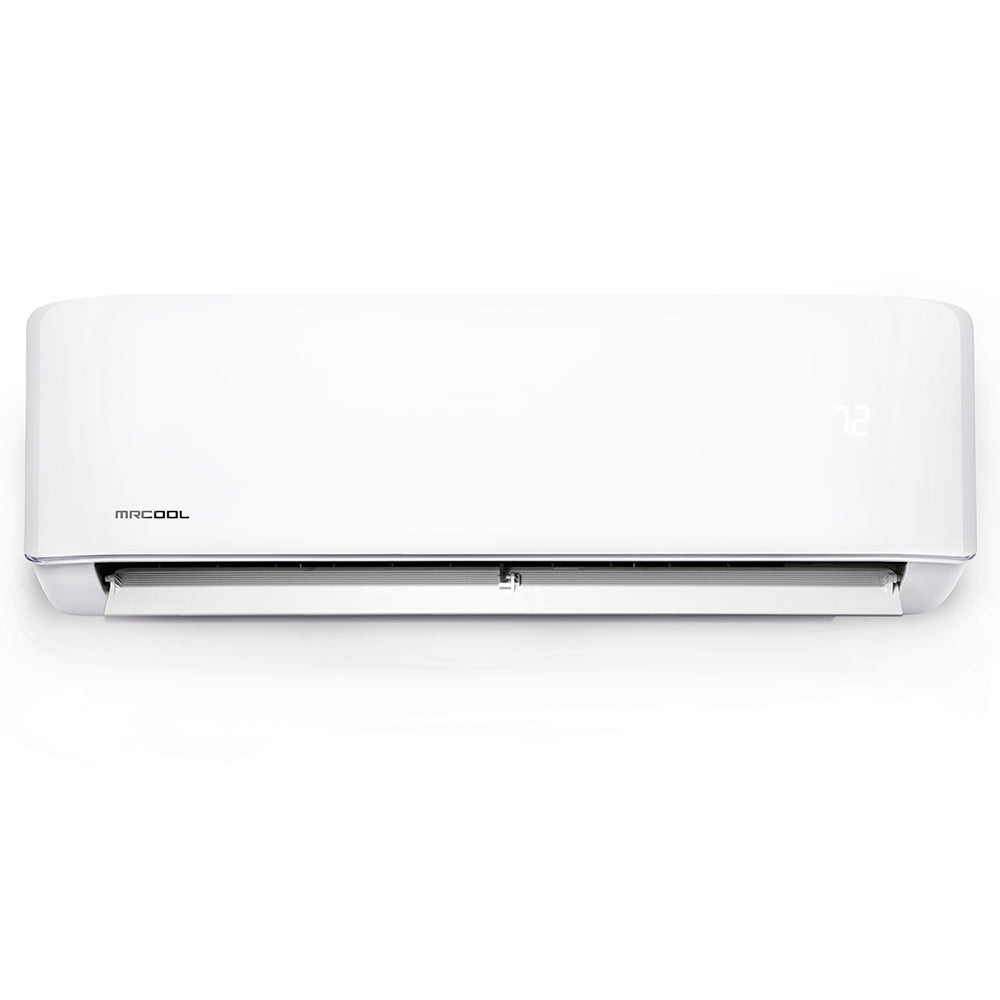

Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point thats hard to beat. This combination air handler and condenser is great for those looking for quality, efficiency, quiet operation, and affordability. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free. This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and youre able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant.

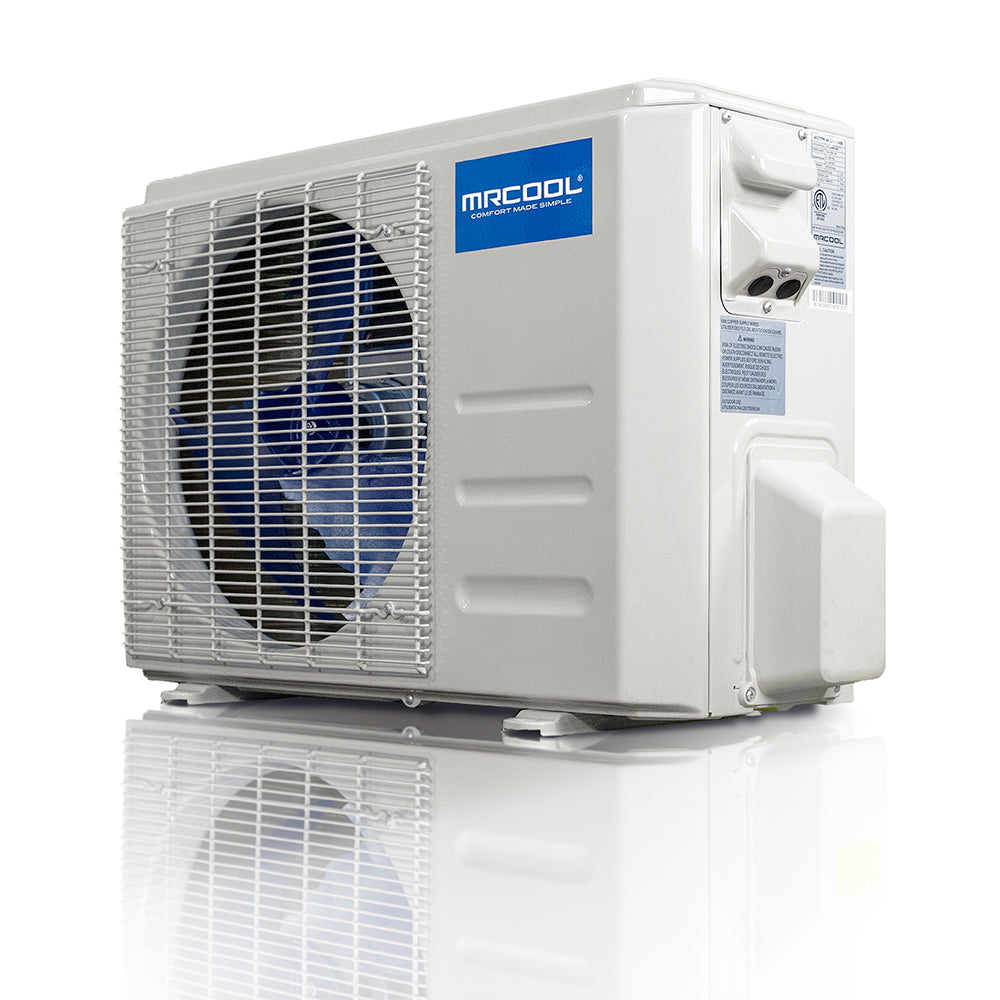

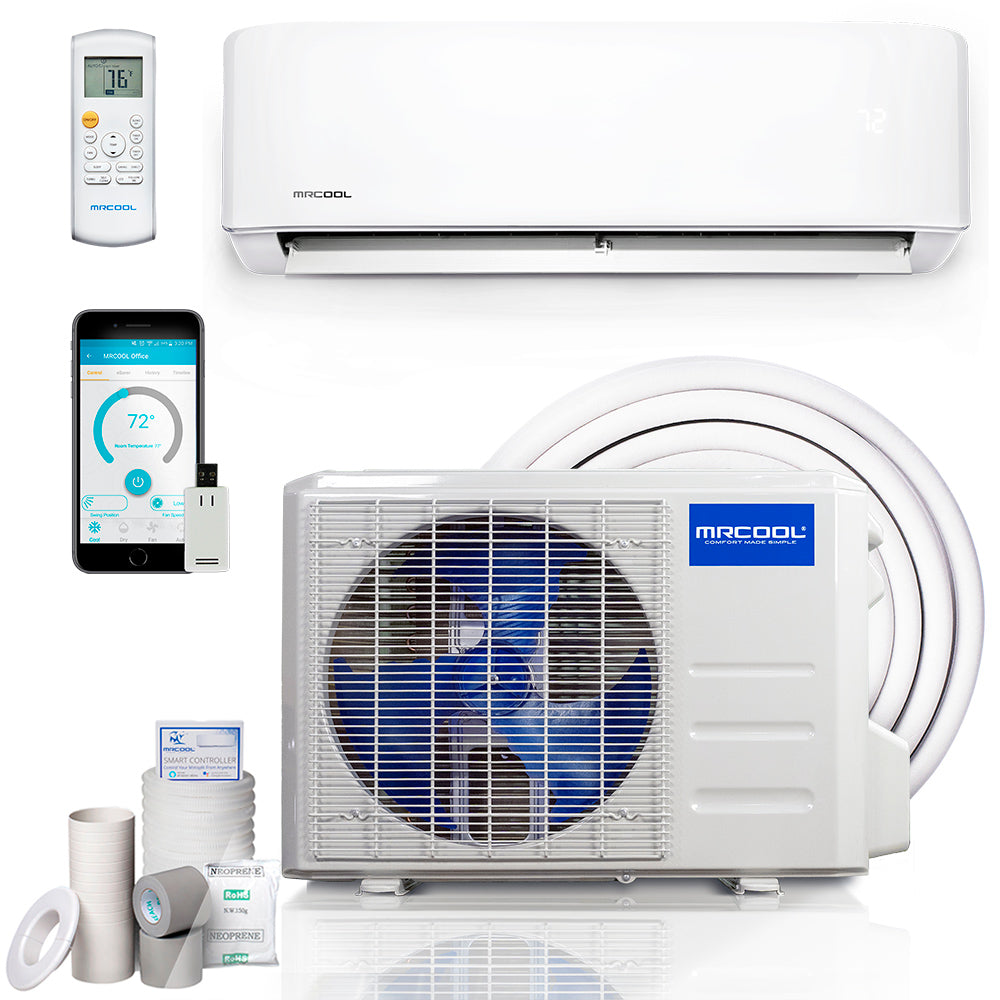

FeaturesInstallation kit includedGold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosionThe new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.Installation by a licensed professional required where applicable1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professionalR-410A environmentally friendly refrigerantSleep mode, louver position memory, and auto restart functionsConvenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
SPECIFICATIONS
Condenser Dimensions |
31.89 "H x 37.24 "W x 16.14 "D |
Condenser Weight |
150.13 lbs |
Air Handler Dimensions |
14.25 "H x 49.57 "W x 11.10 "D |
Air Handler Weight |
40.34 lbs |
SEER |
17.5 |
SEER2 |
17.5 |
EER |
8.5 |
EER2 |
8.5 |
HSPF |
hspf4/hspf5: 12/8 |
HSPF2 |
hspf2-4/hspf2-5: 8.7/6.8 |
Cooling Capacity |
36000 |
Heating Capacity |
36000 |
Voltage |
208/230V |
Phase |
1 |
Cycle |
60Hz |
Max Fuse Breaker |
35 A |
Min Circuit Capacity |
28 A |
Color |
White |
Maximum Coverage Area |
1500 sqft |
Zone Capacity |
1 |
Refrigerant Type |
R-410A |
Refrigerant Volume |
119.9oz |
Decibal Rating |
54.5 dBA |
Decibal Rating Low |
40 dBA |
Decibal Rating High |
56.5 dBA |
Number of Speeds |
3 |
Min Ambient Heat |
5F |
Liquid Line Size |
3/8 in |
Suction Line Size |
5/8 in |
Filter Type |
Washable |
Low Voltage Compensation |
No |
Overload Protection |
Yes |
Adjustable Thermostat |
Yes |
Fan Only Option |
Yes |
Quiet Mode |
Yes |
Sleep Mode |
No |
Auto Cool |
Yes |
WiFi Compatibility |
Yes |
App Compatibility |
Yes |
Works with IOS |
Yes |
Works with Android |
Yes |
Remote Control Included |
Yes |
UL Listed |
Yes |
CSA Listed |
Yes |
ETL Listed |
Yes |
Energy Star Compliant |
No |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Registered Warranty |
1-Year Compressor, 2-Year Parts and 1-Year Remote |
Base Warranty |
None |
Registered Parts Warranty |
2-year |
Base Parts Warranty |
None |
Registered Compressor Warranty |
1-year |
Base Compressor Warranty |
None |
Registered Remote Warranty |
1-year |
Base Remote Warranty |
None |
Registered Labor Warranty |
None |
Base Labor Warranty |
None |
Has Batteries |
Yes |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Aerosol |
Yes |
Contains Compressed Gas |
Yes |
Proposition 65 Warning |
Yes |
PRODUCT DOCUMENTATION
BrochureInstall ManualRELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
