DESCRIPTION

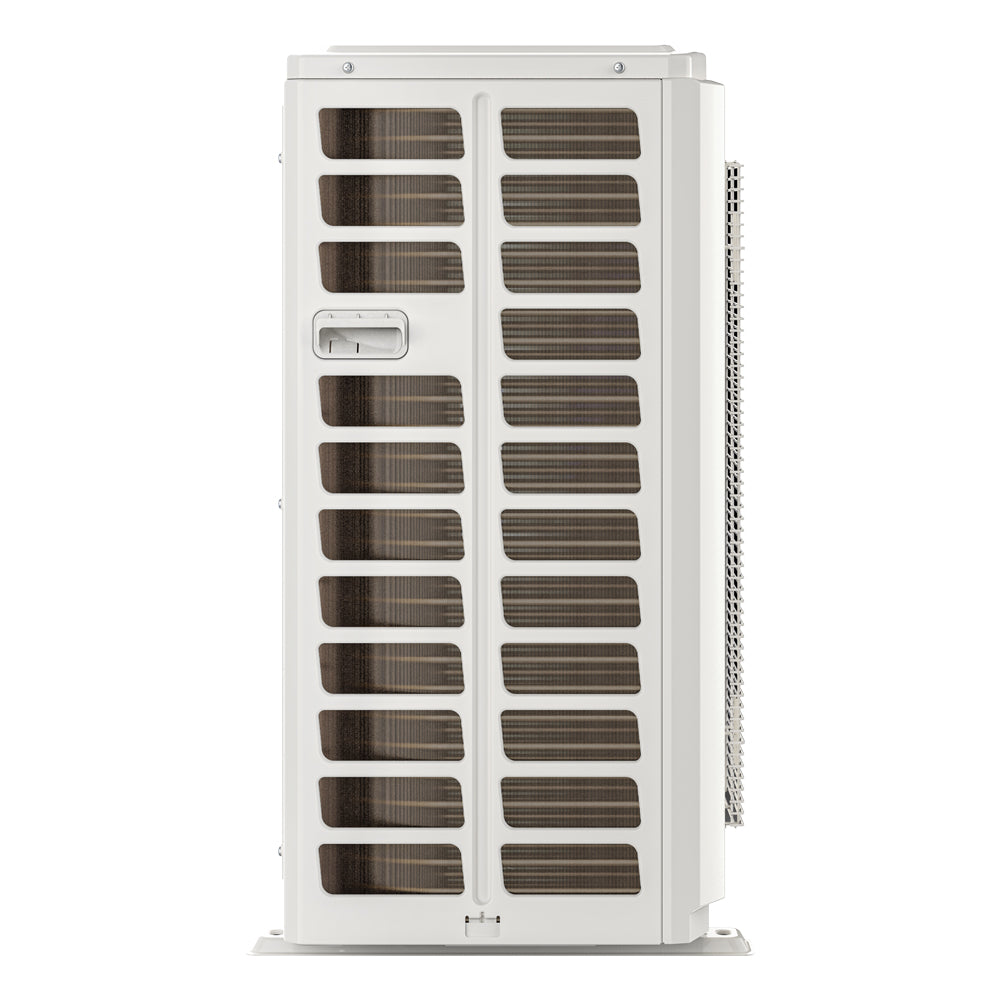

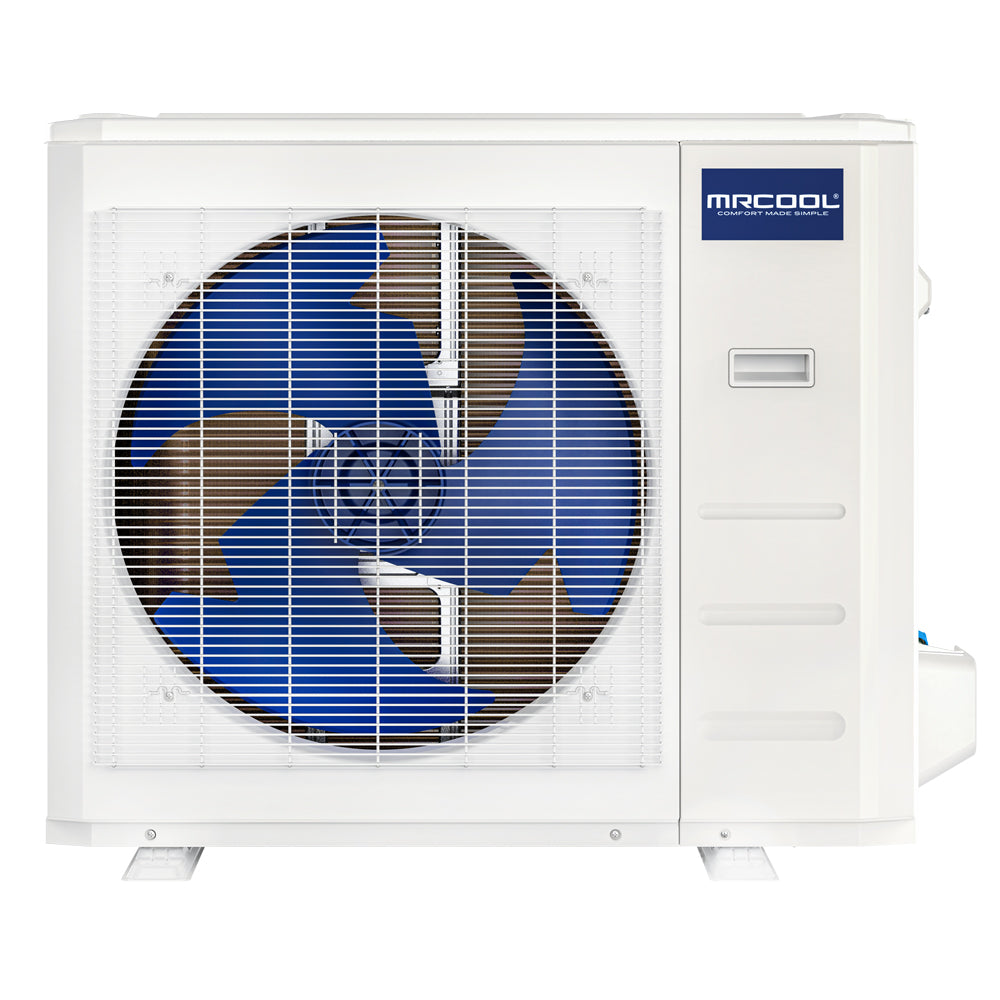

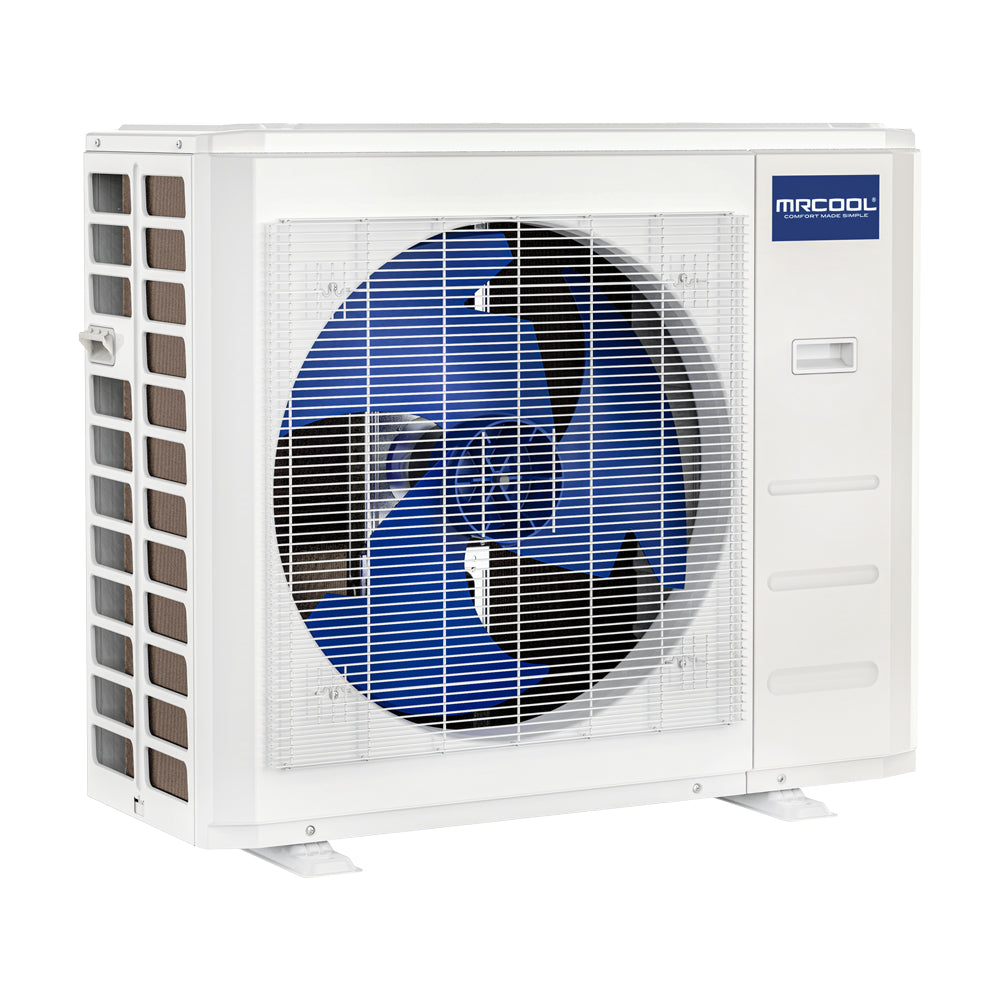

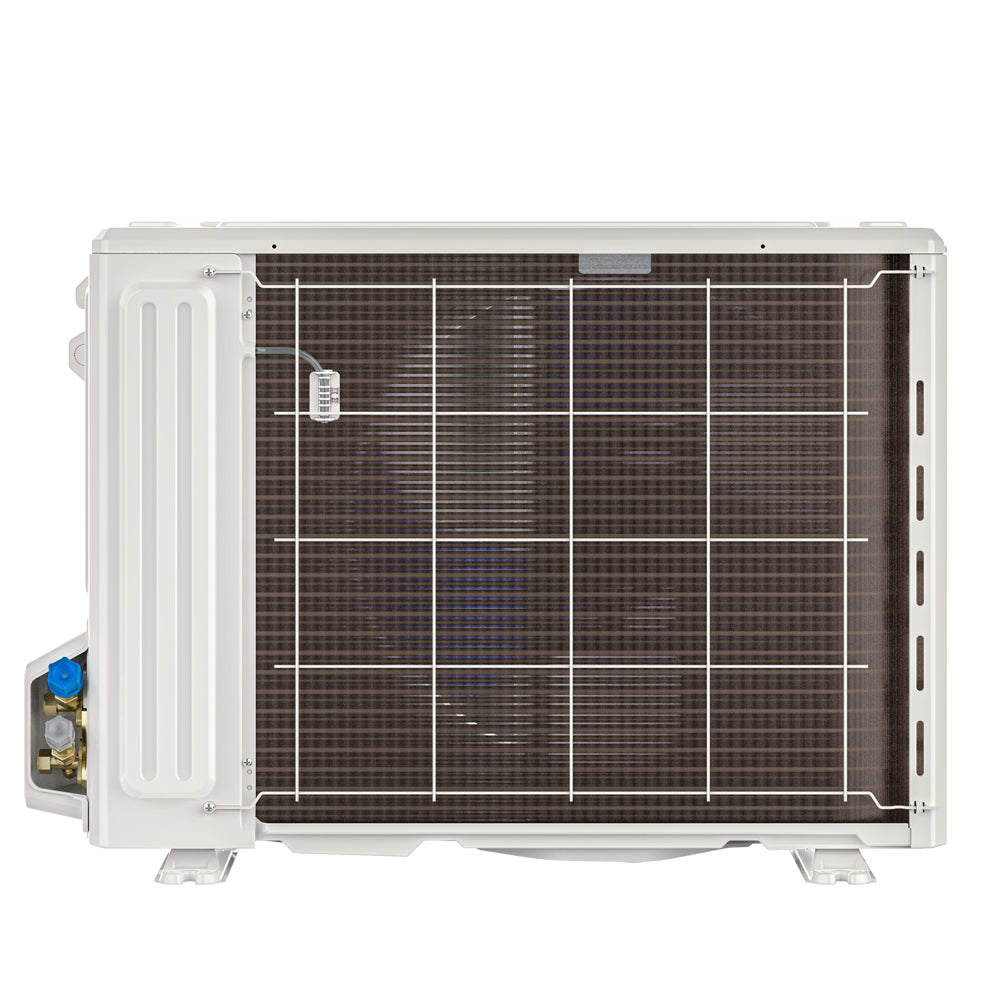

The 36K BTU MRCOOL Hyper Heat Central Ducted Heat Pump Condenser offers a dependable solution for coping with the harshest winters and summers. Utilizing a DC Inverter and cutting-edge variable speed technology, the unit delivers remarkable efficiency, leading to significant utility cost savings without compromising performance. Boasting an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, its superior heating capacity ensures indoor comfort even when outdoor temperatures plummet to -22°F or soar to 122°F. Installation is effortless for professional HVAC technicians utilizing the compatible MRCOOL No-Vac Quick Connect Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, expediting the connection process and lowering installation costs. Furthermore, the unit employs the environmentally friendly R-410A refrigerant, ensuring no harm to the environment. Constructed with top-quality materials like painted galvanized steel, the unit is built to last and withstand damage from extreme weather, animals, or yard equipment. In the unlikely event of any issues, a 10-year warranty covering the compressor, parts, and labor supports the unit. As an added bonus, the labor warranty is automatically activated upon installation, removing the need for a time-consuming registration process.
FeaturesUp to 16 SEER210-year Warranty on Parts, Labor, and CompressorOptional Heating Kit - More Options to Stay Warm.
SPECIFICATIONS
Dimensions |
52.48"H x 37.48"W x 16.34"D |
Weight |
227.07lbs |
SEER2 |
16 |
EER2 |
10 |
HSPF2 |
hspf2-4/2-5: 9.5/8 |
CFM |
4500 |
Cooling Capacity |
36000 |
Heating Capacity |
40000 |
Voltage |
208/230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker |
50 |
Min Circuit Capacity |
41 |
Refrigerant Type |
R410A |
Refrigerant Volume |
165.79oz |
Decibal Rating |
64 |
Inverter |
DC |
Max Lineset Length |
213.25 ft |
Liquid Line Size |
3/8in |
Suction Line Size |
3/4in |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
AHRI Certified |
Yes |
Base Warranty |
10yrs Parts and Labor |
Proposition 65 Warning |
Yes |
Gross Depth |
19.49in |
Gross Height |
57.48in |
Gross Width |
43.11in |
Gross Weight |
255.73lbs |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsWarranty DocAccessory Manual RELATED CERTIFICATES
AHRI CertificateEnergy Guide Certificates
