DESCRIPTION
Nothing feels better than ultimate comfort all the time, so why not invest in the affordable MRCOOL 24k BTU up to 19.2 SEER Central Ducted DC Inverter Heat Pump System? With this system, youll enjoy a simpler installation and absolute climate control throughout around 1,000 square feet of your home. Installing this system is easy, because it comes with a 25 foot pre-charged MRCOOL line set, which essentially just needs to be plugged into the air handler and the condenser. Time is money, and youll be saving both because of the line set in this system. This air handler is multi-position, meaning it can support upflow, downflow, horizontal left and horizontal right airflow needs. The variable condenser in this system is so efficient, youll find yourself saving money in no time. Identify error codes on the thermostat or on the handlers panel. In case something goes wrong, youll be completely covered by a 10 year parts and service warranty. For comfort exactly how you want it, get this MRCOOL 24k BTU 19.2 SEER Central Ducted DC Inverter Heat Pump System.

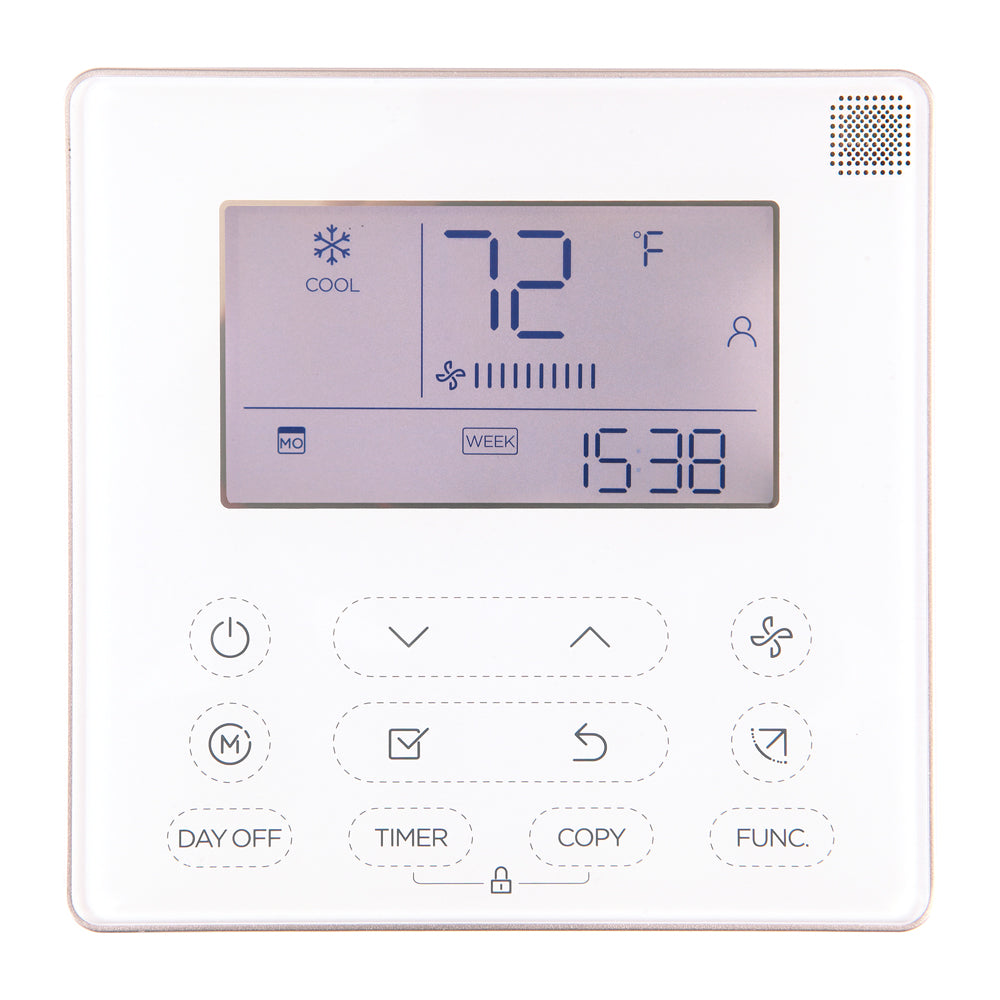

FeaturesIncludes features such as timer mode, auto cool mode, fan only mode, and moreWired thermostat included (.78 in x 4.72 in x 4.72in)Multi position installationOptional heating kit avaibleR-410A environmentally friendly refrigerant10 year parts and labor warranty*
SPECIFICATIONS

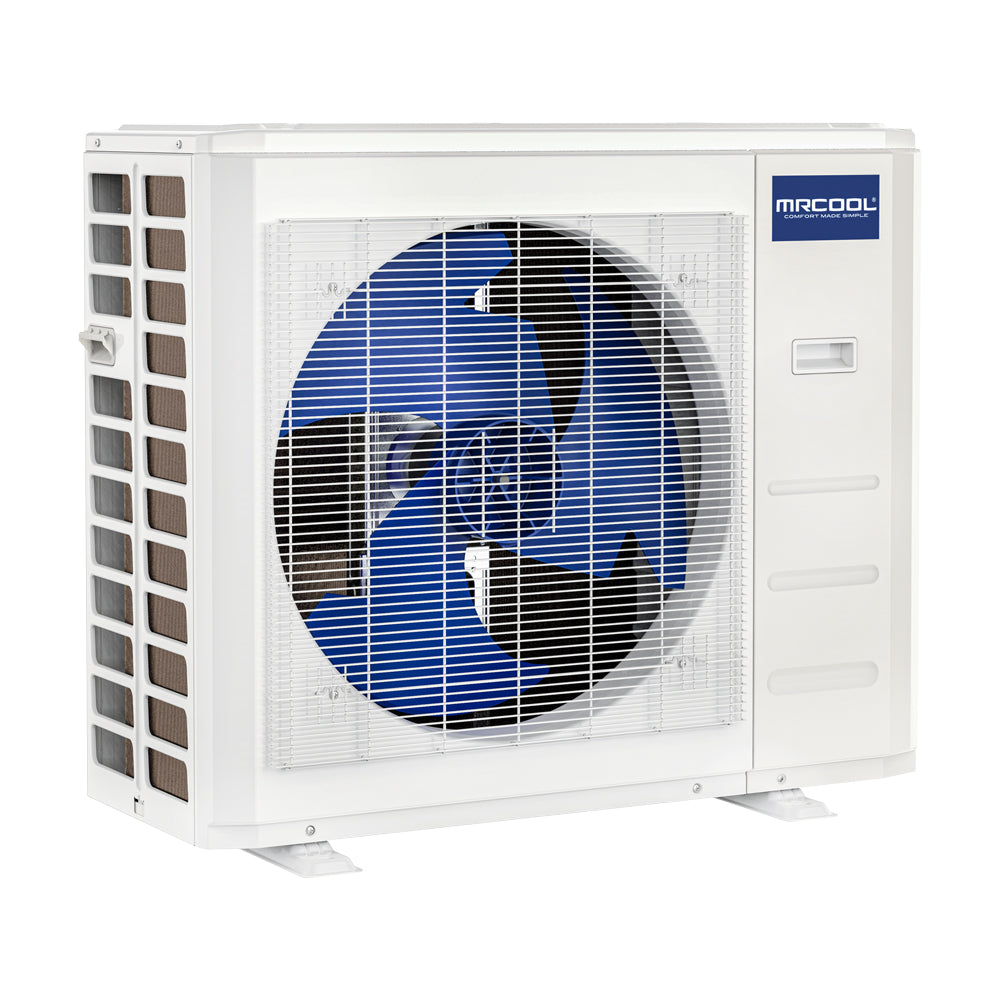

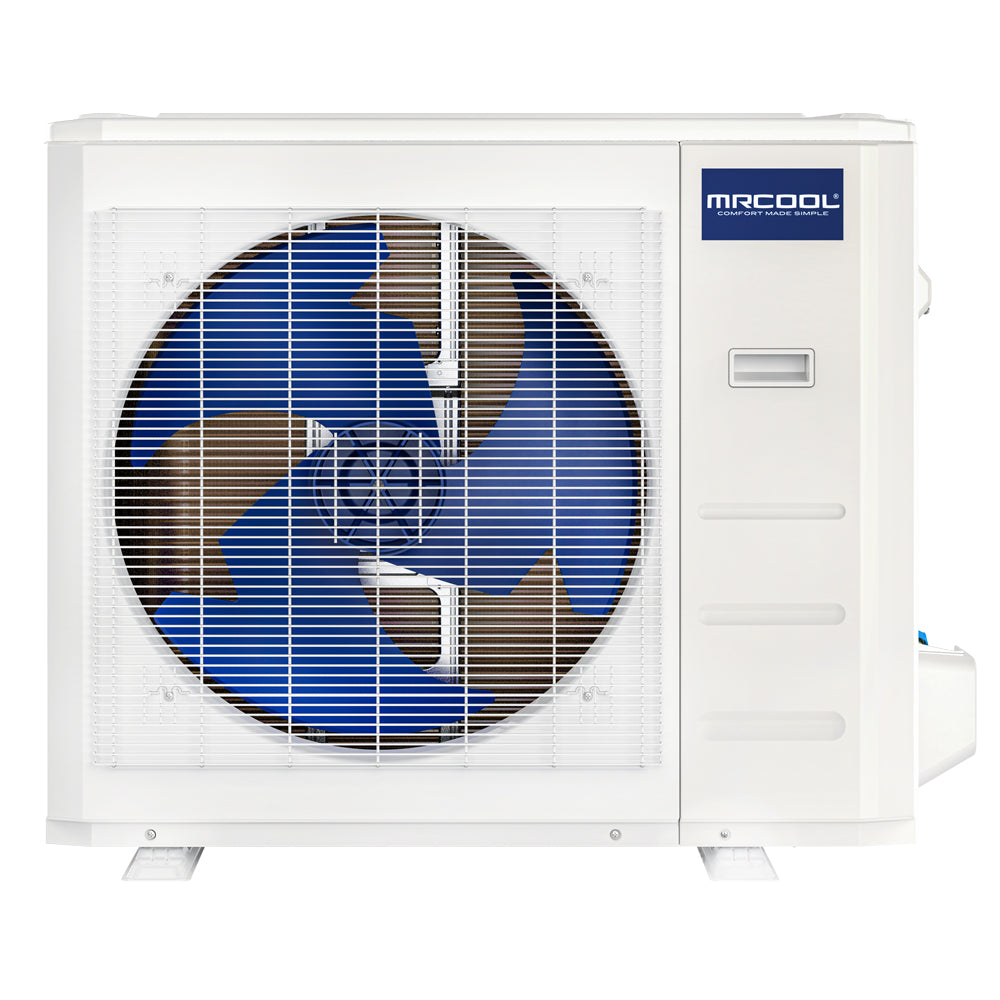

Condenser Dimensions |
31.89 "H x 37.24 "W x 16.14 "D |
Condenser Weight |
125.22 lbs |

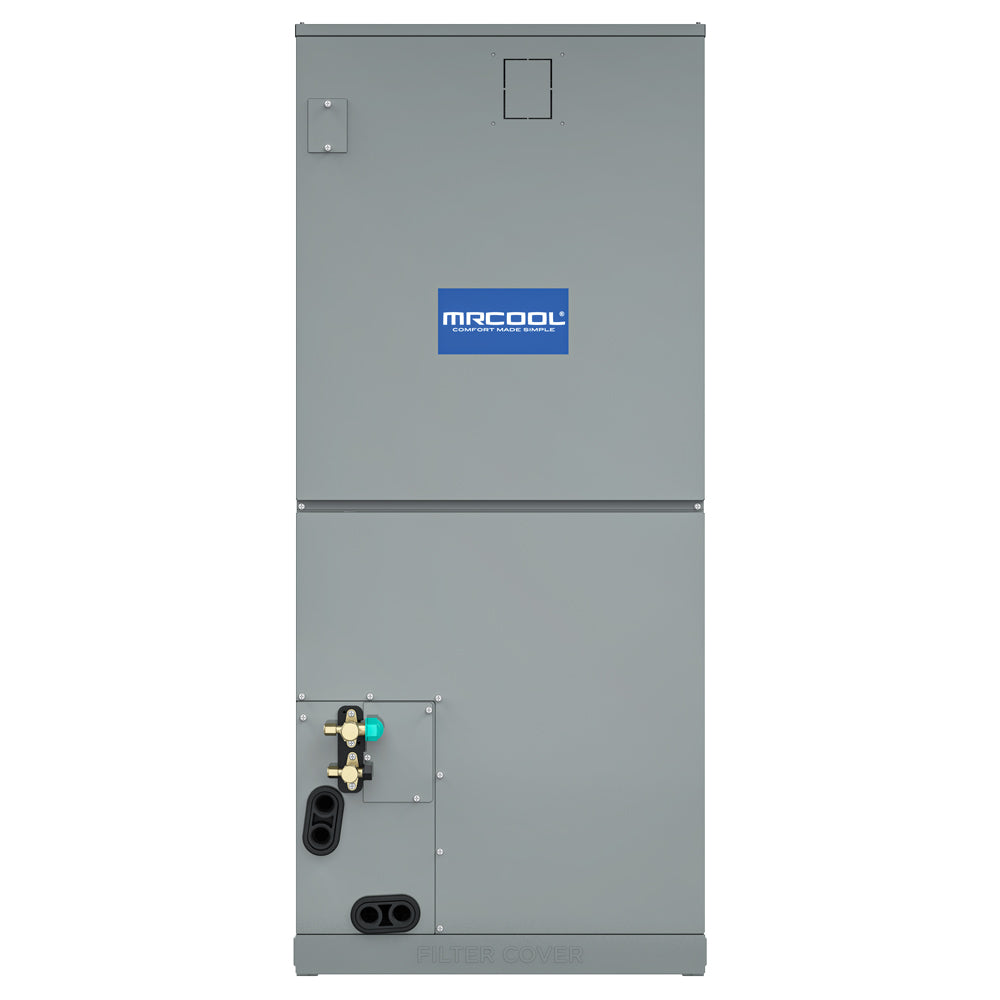

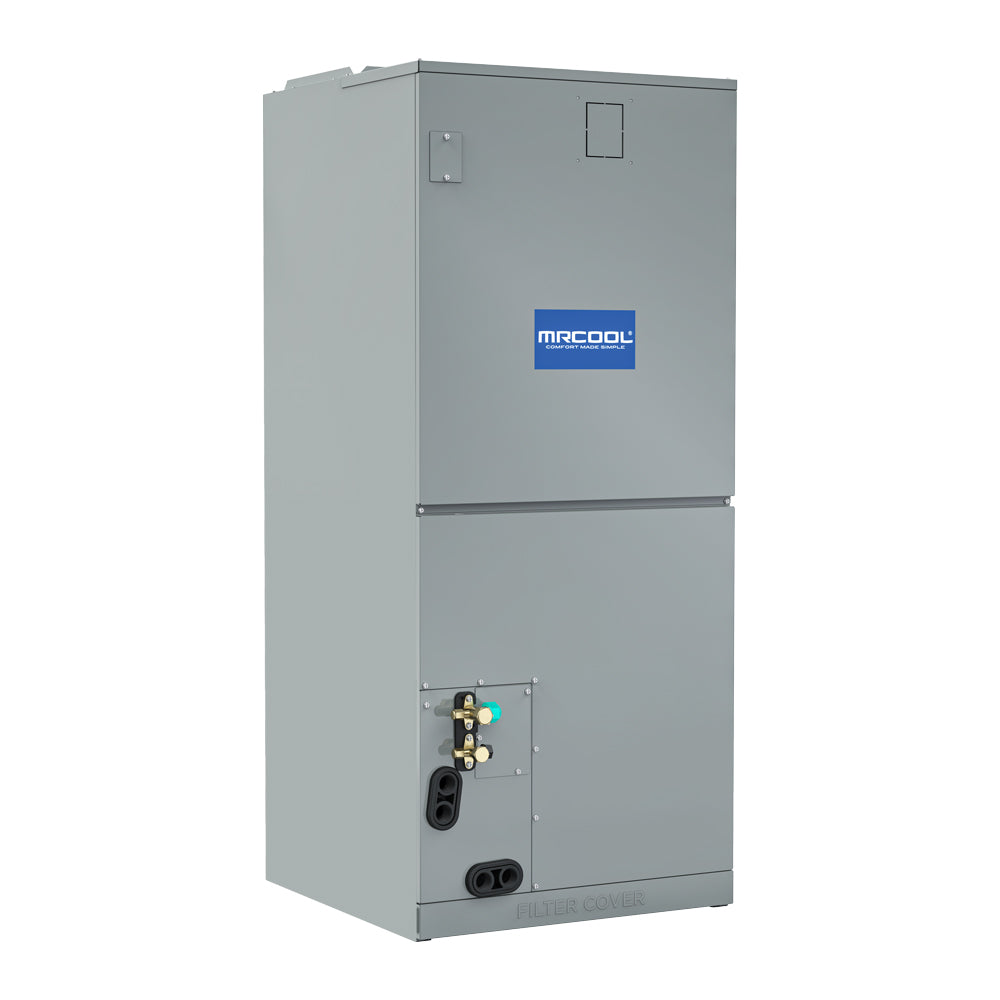

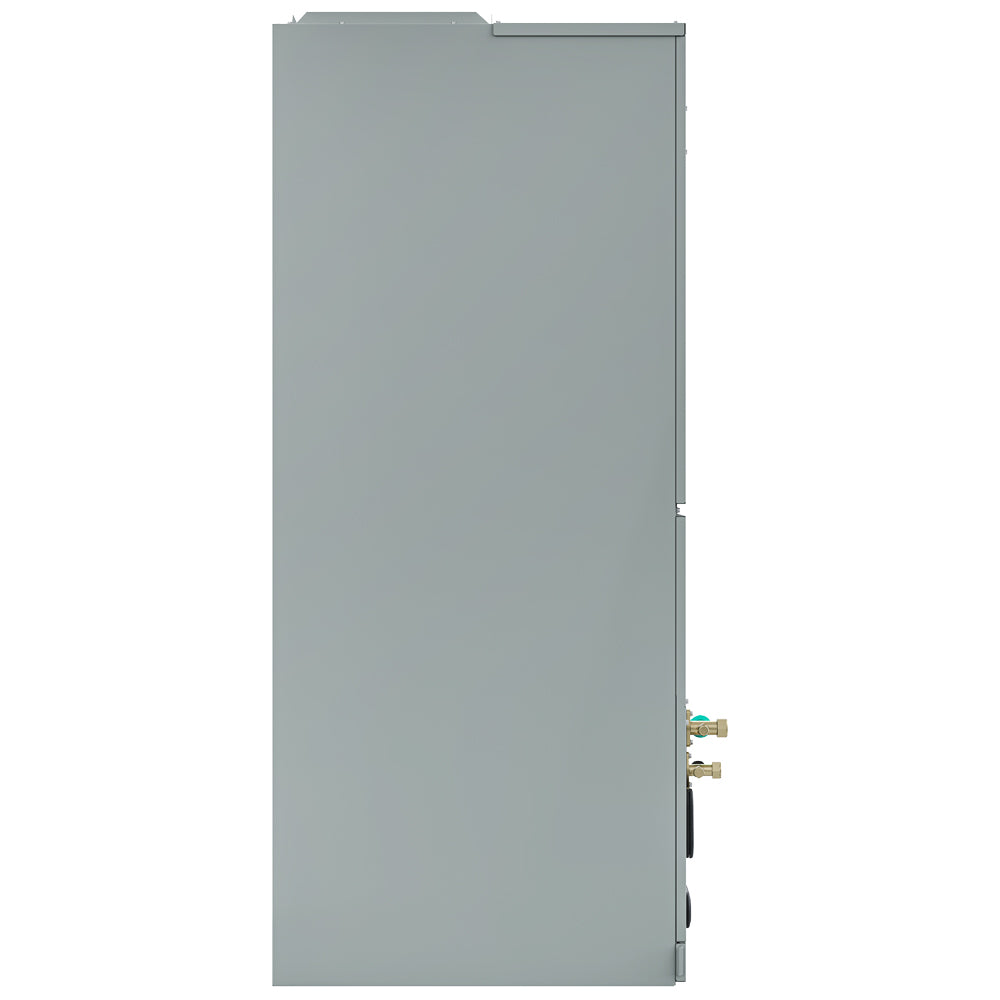

Air Handler Dimensions |
45 "H x 21.02 "W x 17.52 "D |
Air Handler Weight |
106.48 lbs |
SEER |
19.2 |
EER |
12.5 |
HSPF |
hspf4/hspf5: 10/8.5 |
CFM |
752.94/682.35/611.76 |
Cooling Capacity |
24000 |
Heating Capacity |
24000 |
Voltage |
208/230 V |
Phase |
1 |
Cycle |
60 Hz |
Max Fuse Breaker |
35 |
Min Circuit Capacity |
22 |
Color |
Gray |
Rated Load |
0.6 |
Zone Capacity |
1 |
Refrigerant Type |
R410A |
Refrigerant Volume |
81.13 oz |
Decibal Rating |
43.0/41.5/38.0 |
Decibal Rating Low |
38 |
Decibal Rating High |
43 |
Air Flow Direction |
Multi-position |
Min Ambient Cool |
-13F~122F |
Min Ambient Heat |
-13~75.2F |
Lineset Included |
yes |
Lineset Length |
25ft |
Liquid Line Size |
3/8in |
Suction Line Size |
5/8 in |
Compressor Motor Type |
Twin-Rotary |
Condenser Fan Motor RPM |
850/750/700 |
Filter Type |
Replaceable |
Auxiliary Heater Included |
no |
Auxiliary Heater Available |
yes |
Auxiliary Heater Sizes |
5kw, 8kw,10kw, 15kw |
Adjustable Thermostat |
yes |
Fan Only Option |
yes |
Sleep Mode |
yes |
Auto Cool |
yes |
App Compatibility |
no |
Remote Control Included |
yes |
AHRI Certified |
yes |
Base Warranty |
10 years parts and labor |
PRODUCT DOCUMENTATION
BrochureInstall ManualSpecsService ManualWarranty DocAccessory Manual RELATED CERTIFICATES
AHRI Certificate
