SPECIFICATION

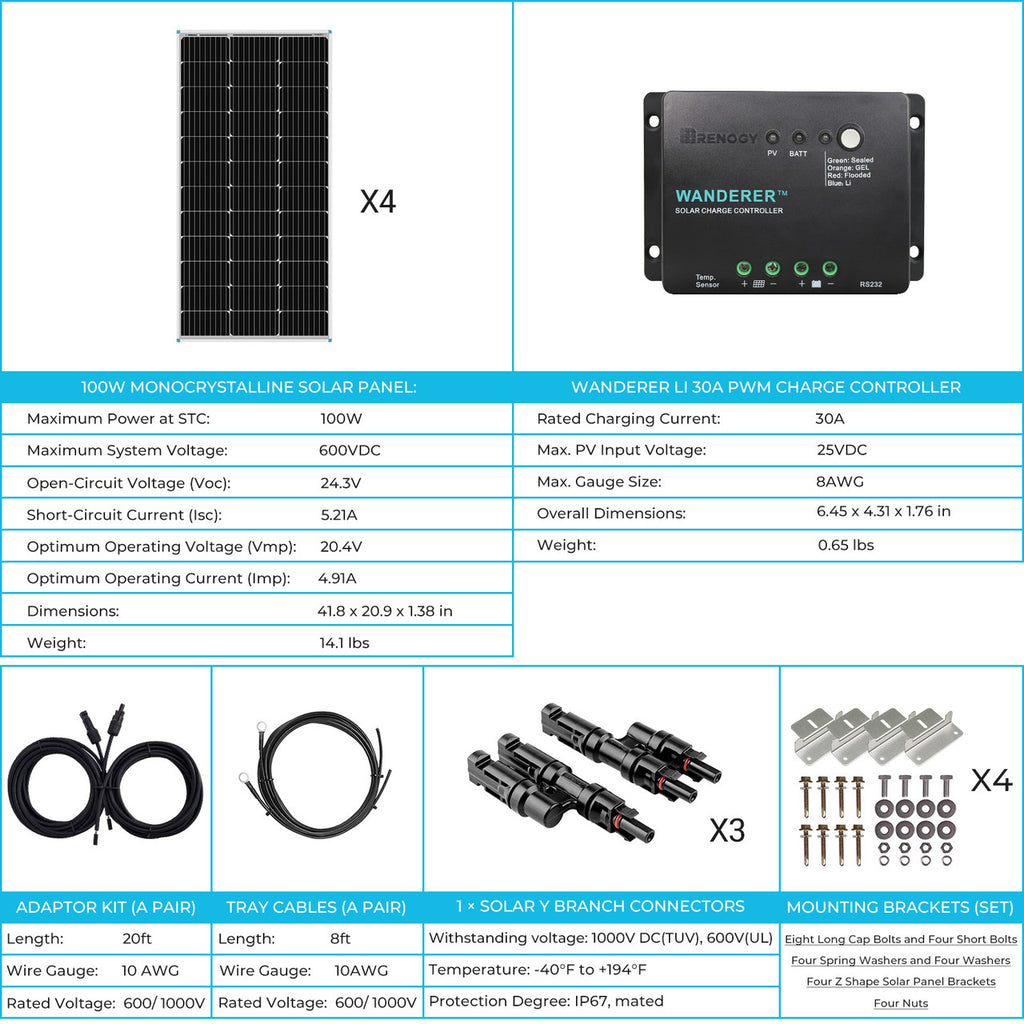

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8*20.9*1.38in/1062x530x35mm
Weight: 14.1lbs/6.4kg
opc:
RENOGY WANDERER LI - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER
Nominal Voltage: 12 VDC
Rated Charge Current: 30A
Max. PV Input Voltage: 25 VDC
Max. PV Input Power: 400W (12V)
RENOGY 20FT 10AWG ADAPTOR KIT (SET)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY 8FT 10AWG TRAY CABLES (A PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY SOLAR Y BRANCH CONNECTORS
Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Protection Degree: IP67, mated
Wiring Size Range: 10, 12, 14 AWG
Temperature: -40°F to +195°F
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25-year power output warranty: 5 year 95% efficiency rate, 10 year 90% efficiency rate, 25 year 80% efficiency rate 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
