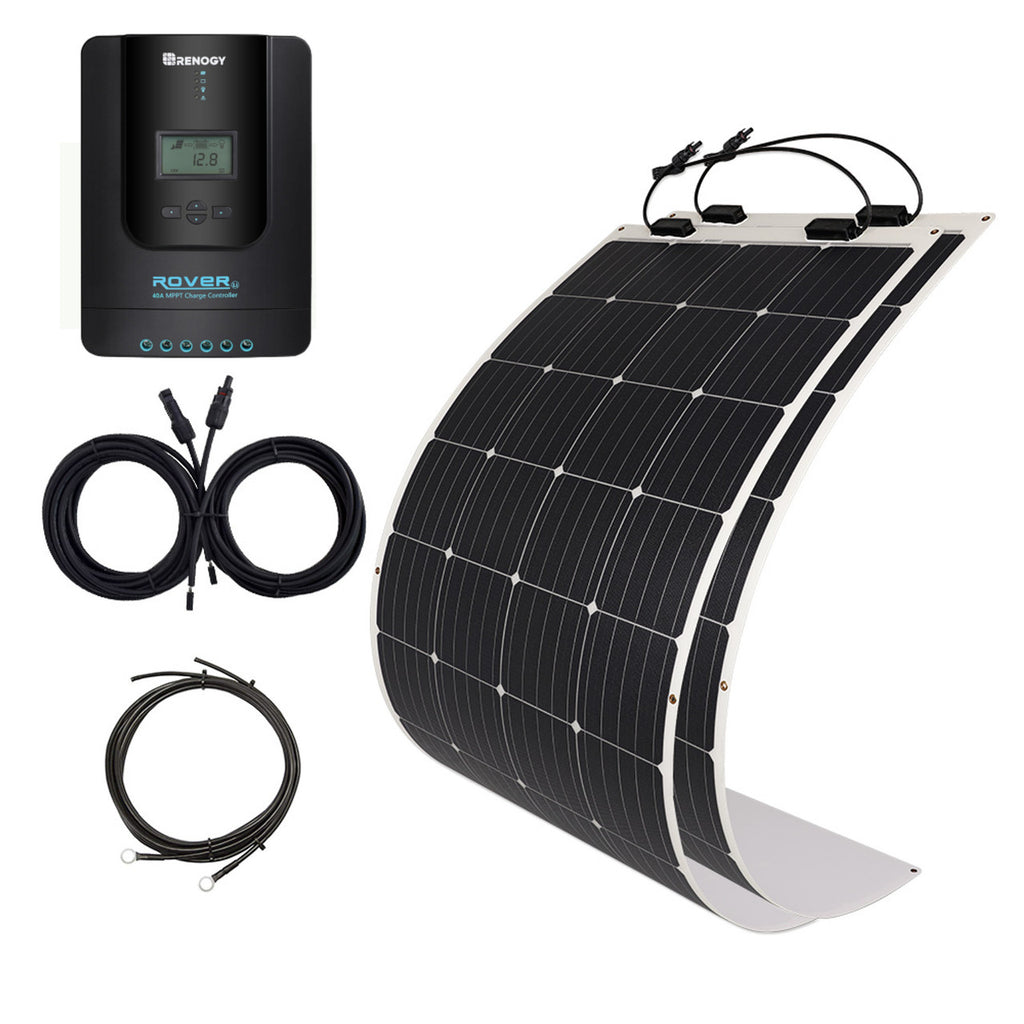

Renogy 350 Watt Solar Flexible Kit RKIT350DB-RVRE40-US
Description
Renogy’s Flexible Kits are back and better than ever! Adding solar to your application is a breeze since we've included the necessary components to get you started on your solar quest to eliminate the burden of dead batteries and maximize your fun under the sun. Unlike traditional gas generators, Renogy’s Flexible Kits will silently charge your batteries and ensure they’re topped off just right. Our new
175W Flexible panels are thin, lightweight and take up minimal space.
KEY FEATURES
Solar Panel
- Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system.
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- Advanced MPPT Technology with up to 99% high tracking efficiency, 96% conversion efficiency, and Lithium-reawakening feature.
- With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream.
Charge Controller
- 12V / 24V Battery Compatibility with Auto Recognition.
- Backlit LCD displays system information and identifying error codes.
- Advanced MPPT Technology with up to 99% high tracking efficiency, 96% conversion efficiency, and Lithium-reawakening feature.
- 4 Deep Cycle Battery Pre-Sets: Gel, Flooded, Lithium-Iron Phosphate (12.8V), and Sealed/AGM.
- Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.
SPECIFICATION

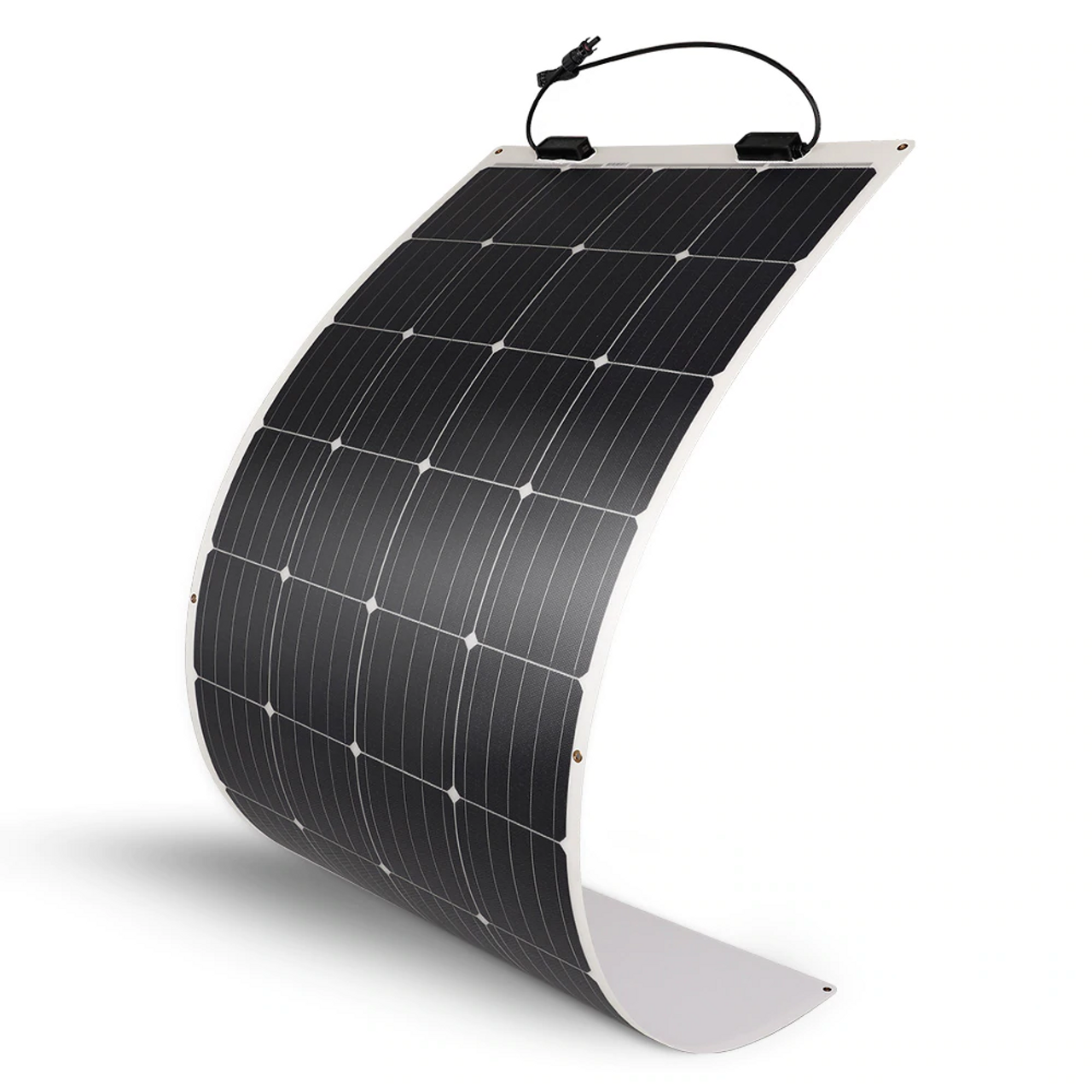

175 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL
Maximum Power at STC: 175W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 23.9V
Optimum Operating Voltage (Vmp): 19.5V
Optimum Operating Current (Imp): 8.89A
Short-Circuit Current (Isc): 9.50 A
Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)
Weight: 6.2 lbs (2.8 kg)

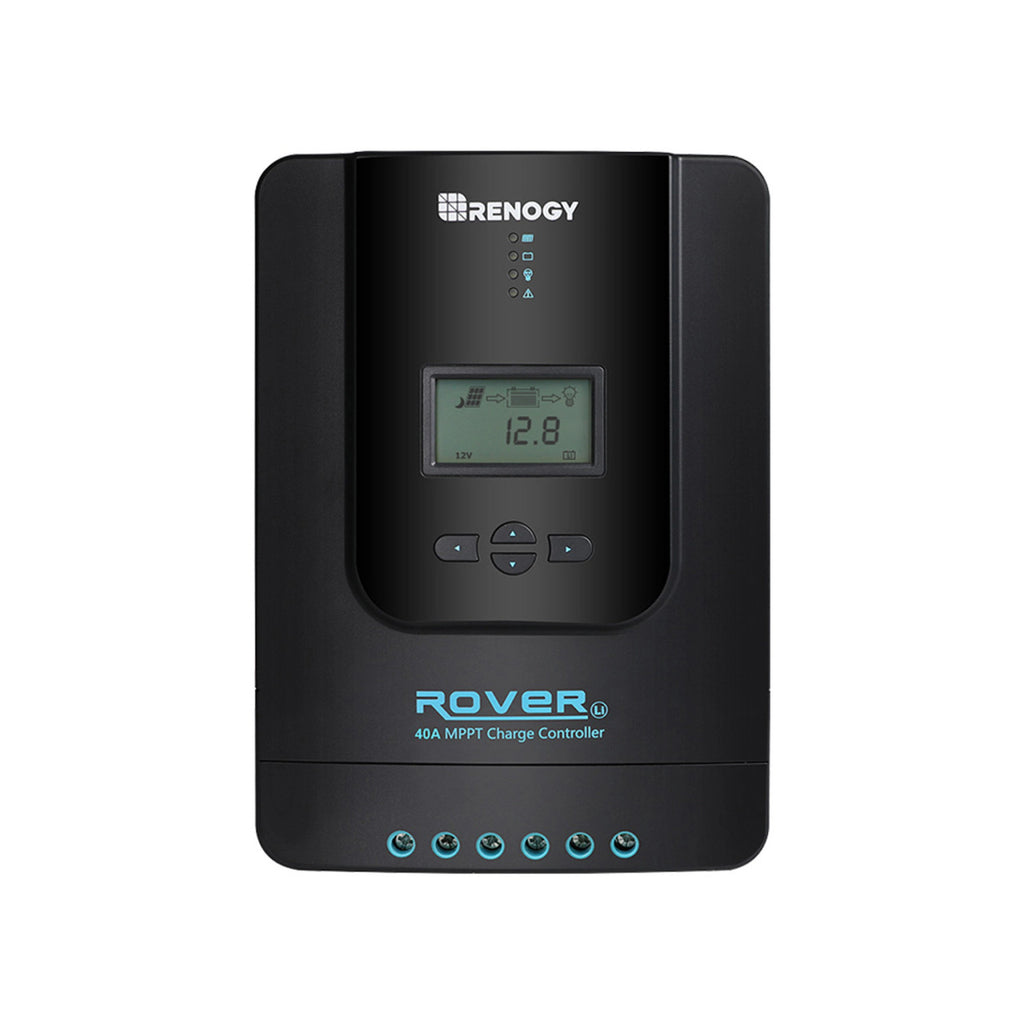

ROVER LI 40A MPPT CHARGE CONTROLLER
Nominal Voltage: 12V/24V Auto Recognition
Battery Rated Current: 40A
Max Battery Voltage:: 32V
Max. PV Input Voltage: 100 VDC
Max. PV Input Power: 12V/520W, 24V/1040W
opc:

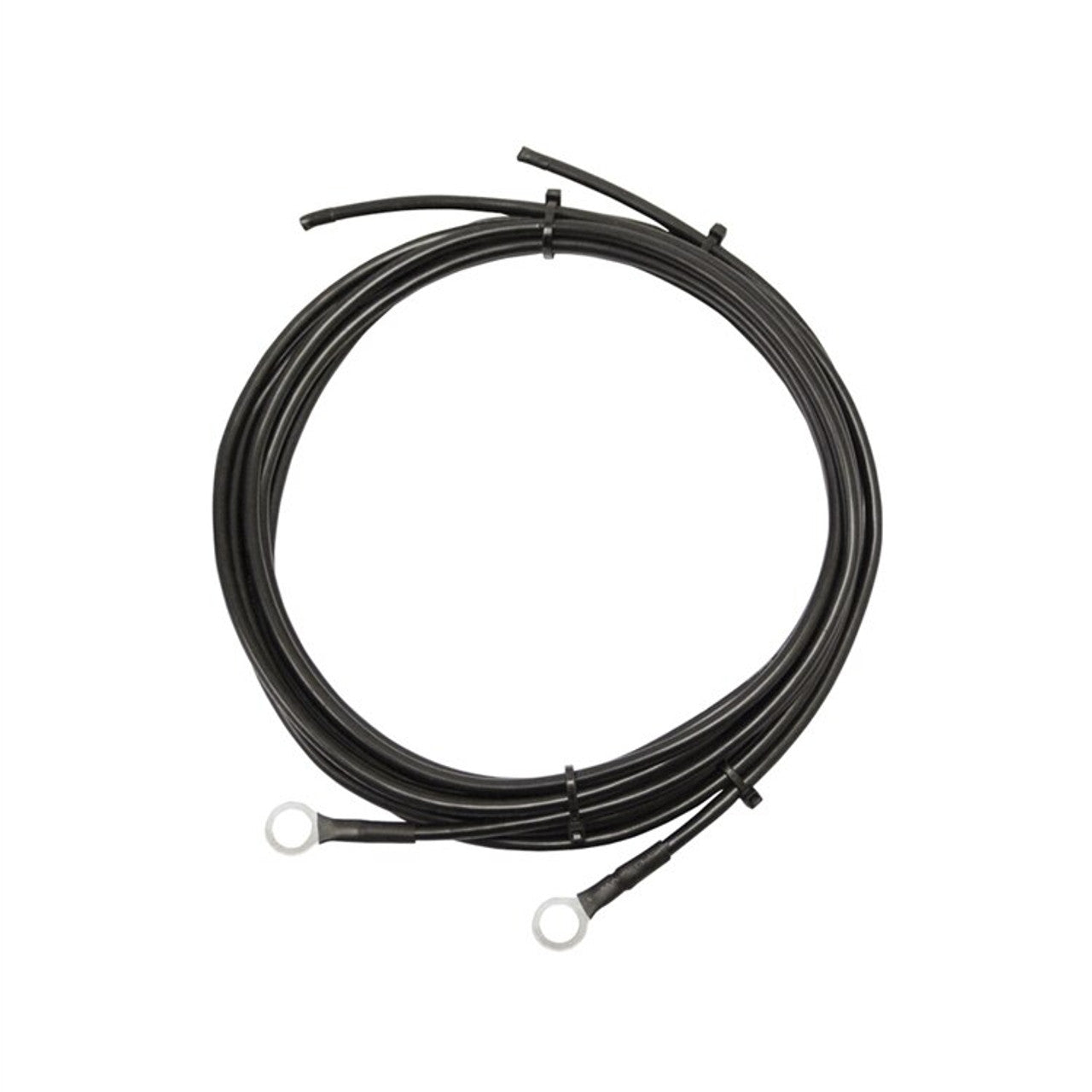

RENOGY 8FT 10AWG WIRE COPPER SOLAR TRAY CABLES FOR CONNECTING CHARGE CONTROLLER TO BATTERY (A PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

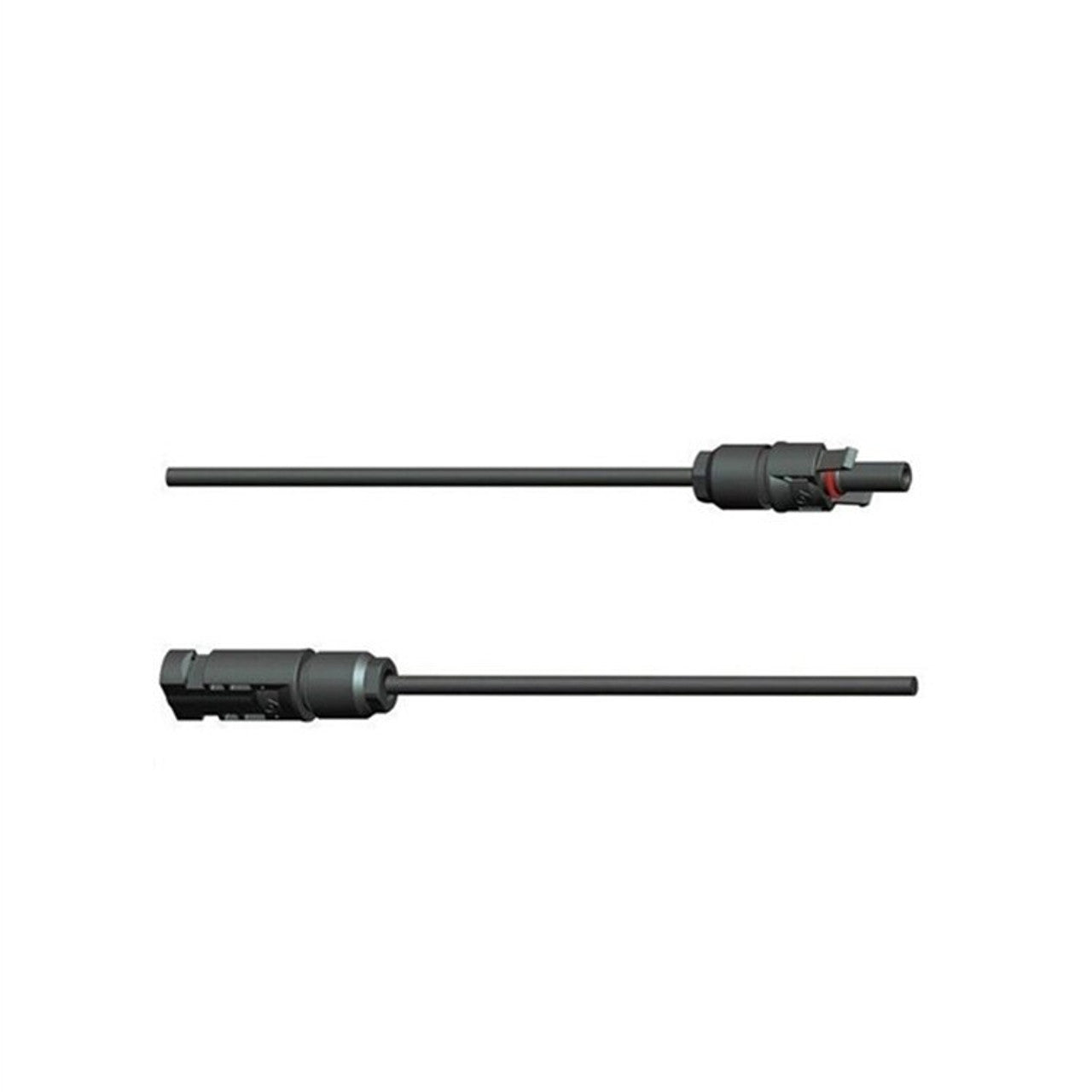

RENOGY 20FT 10AWG ADAPTOR KIT - CONNECTING SOLAR PANELS TO CHARGE CONTROLLERS (A PAIR)
Length: 20ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty
Accessories: 1-year material and workmanship warranty
